DN
|

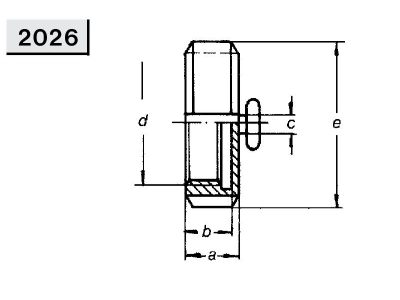

Размер | |||||
| a | b | c | d | е | ||
| Резьба DIN 405 | ||||||
| 10 | 16 | 15 | 8 | 28 x 1/8″ | 38 | |
| 15 | 18 | 16 | 8 | 34 x 1/8″ | 44 | |
| 20 | 21 | 18 | 8 | 44 x 1/6″ | 54 | |
| 25 | 21 | 18 | 8 | 52 x 1/6″ | 63 | |
| 32 | 21 | 18 | 8 | 58 x 1/6″ | 70 | |
| 40 | 21 | 18 | 8 | 65 x 1/6″ | 78 | |
| 50 | 22 | 19 | 8 | 78 x 1/6″ | 92 | |
| 65 | 25 | 21 | 8 | 95 x 1/6″ | 112 | |
| 80 | 30 | 26 | 8 | 110 x 1/4″ | 127 | |
| 100 | 31 | 26 | 8 | 130 x 1/4″ | 148 | |
| Размер DN | DN 10, DN 100, DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80 |
|---|---|
| Производитель | Niob Fluid s.r.o. |
| Марка стали | AISI 304 |
