DN
|

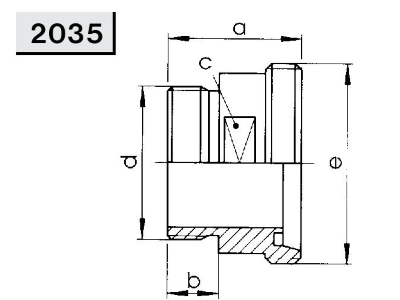

Размер | |||||
| a | b | c | d | e | ||
| 10 | 40 | 14 | SW19 | R 3/8″ | Rd 28 x 1/8″ | |
| 15 | 40 | 14 | SW24 | R 1/2″ | Rd 34 x 1/8″ | |
| 20 | 42 | 14 | SW30 | R 3/4″ | Rd 44 x 1/6″ | |
| 25 | 48 | 20 | SW36 | R 1″ | Rd 52 x 1/6″ | |
| 32 | 48 | 20 | SW46 | R 1 1/4″ | Rd 58 x 1/6″ | |
| 40 | 50 | 20 | SW50 | R 1 1/2″ | Rd 65 x 1/6″ | |
| 50 | 52 | 20 | SW60 | R 2″ | Rd 78 x 1/6″ | |
| 65 | 56 | 22 | SW75 | R 2 1/2″ | Rd 95 x 1/6″ | |
| 80 | 66 | 25 | SW90 | R 3″ | Rd 110 x 1/4″ | |
| 100 | 72 | 30 | SW105 | R 4″ | Rd 130 x 1/4″ | |
| Размер DN | DN 10, DN 100, DN 15, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80 |
|---|---|
| Производитель | Niob Fluid s.r.o. |
| Марка стали | AISI 304, AISI 316 L |
